paperboard + strengthen carton, 1pc per carton.led street light
OEM is available for CE cUL UL DLC 5yrs Warranty led Street/Canopy/Flood/High bay/Park/Tunnel LED Lights. OEM Design is allowable if your QTY is big enough
shanghai or ningbo
3-5days or denpending on the bulk quantity

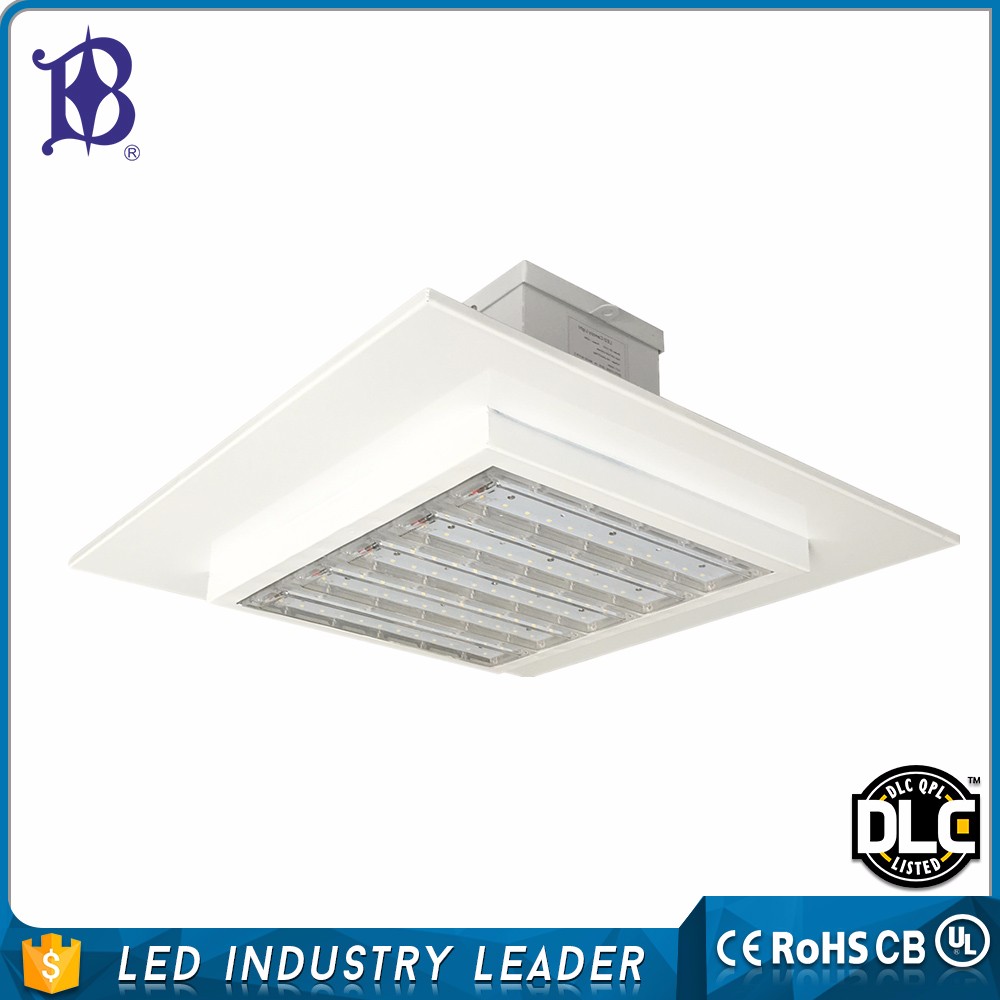

SP-2103 LED Canopy Light ed street light price
High Quality LED Use of LED high end Nichia chip, LED packaged by Singbee Lighting top industrial level lumen efficiency
Quality Assured Driver Use of HLG Meanwell Driver, warranty by both Meanwell and Singbee in China and oversea offices.
Fully assured certifications This product is certificated in UL/CE/RoHS/Erp/EMC/LVD and also Product SP-2103 is listed on the DLC QPL
Vast Flexibility Product Specifications 3 Wattage options: 100W/120W/150W 8 Light distribution options: Bat I/ Bat 360/ Bat Shape/ Rack B/ 170 degrees/ 80 degrees/ 40 degrees/ 20 Degrees 3 Voltage Input: 90-277VAC/347-480VAC/ 12-24VDC 3 Color Temperature: 4000K/5000K/ 5700K (other color temperature available on request) Standard Housing Color: Sliver (Other housing color available on request)
Project suited Specifications Color Rendering Index: >80Ra Working Temperature: -45 degrees to +55 degrees Size: Xmm(depends on wattage) by 459mm by 105mm
Amazing Return of Investment Compared to traditional lighting, energy saving more than 80%, have an expected useful lifespan up to 10 years
Extensive Project Experience Singbee Lighting has years of experience (10 years by 2016), Singbee Lighting have use this product in many project across the whole word.
Parameters of the led canopy light
Led Canopy light
3B 3modular bar
4B 4modular bar
5B 5modular bar
17 170D 80 80D 40 40D 20 20D B1 BAT1 B3 Bat360 RB Rack B S1 Bat Shape1 S3 Bat Shape 3
DIM dimming PH phoncell MS motion sensor
Motion sensor dimming and photocell are availble to Fitbar series. See singbee wing catalogue for more detail

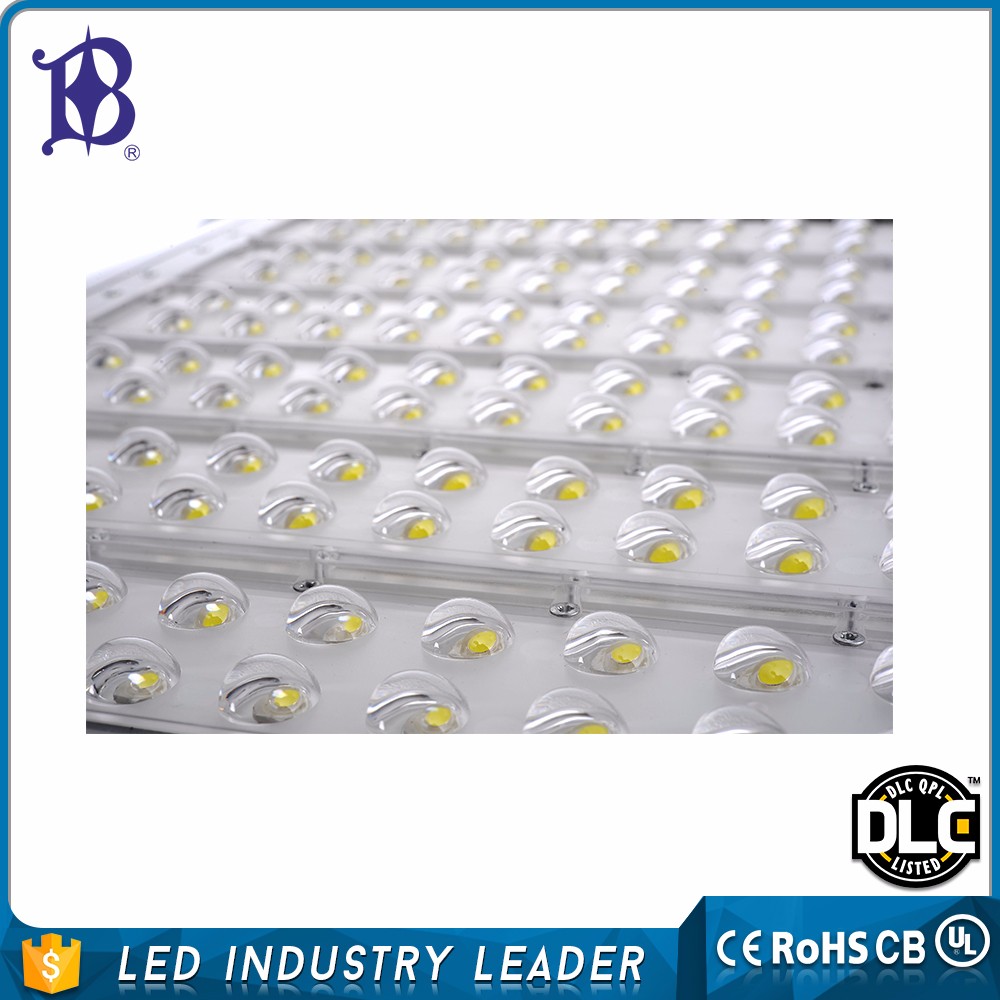

High Performance Lens Option and Flexible Modular Bar System
Fitbar has nine different lens available. 20D, 40D, 80D, 170D, Rack B, B1, B3, S1 and S3. Depending on the existing allocation of the lamps, and the flexible lens options, Fitbar delivers the best performance level for lighting at any one point within the station high brightness and low glare.
Modular Design & Multiple Functional Mounting
Fitbar employs a modular bar system. Providing easy fast maintenance and higher flexibility. Each modular has its own heat sink and is attached to the main housing frame. This system also allow maximum air flow within and outside the lamp. Making the fitbar an excellent heat management lamp.

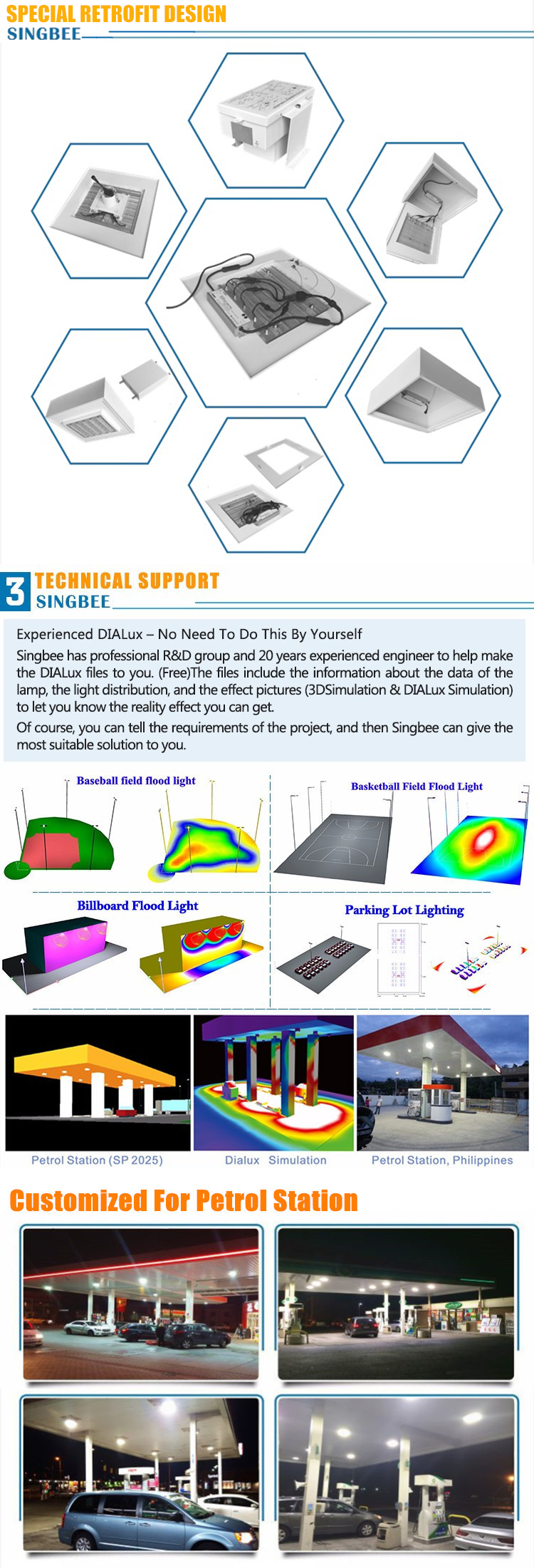

Fitbar modular system flexibility providespossibility of combining different mountings. Therefore, fitbar can be a recessed, surface mounted, hanged and retrofit to existing traditional shoebox lighting or become street light. Fitbar can also fit into different holes size, from 102mm circle to 580mm square.
Triple Secure Waterproof
Fitbar provides a triple waterproof machanics layer. Water seal is applied in each modular bar at the front, the neck point of each lamp, as well as the top seal for the recess hole. Water seal is also apply to surface mount light. Allow fitbar to be fitted in single deck or double deck canopy.
Q1. Can I have a sample order for LED Line?
A:Yes, samples orders are accepted in our China, Europe and Northern America production site.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for LED Line order?
A:We understand the importance of seeing the lamp before, therefore we accept 1 pieces MOQ order as an initial sample order.
Q4. How do you ship the LED Line and how long does it take to arrive?
A:From the US warehouse, UPS can help to bring the goods to door within 1 day. And from our Portugal branch, the express can send the goods to door about 1-3 days.
Q5. How to proceed an order for LED Line?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6: Do you offer guarantee for LED Line?
A: Yes, we offer 5 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution i ncluding re-call according to real situation.
Line installation and introduction https://youtu.be/38PiLDvT6MU
Line Color temperature and dimmable adjustable https://youtu.be/bxT54XDnttc
On the premise of proper usage and storage. We will replace or repair any lights made by Singbee. Products can be made or shipped by any of our official sites and have a warranty from all of our Singbee sites. In another,products shipped from China can be warranty from our Europe or USA factory as well. All products made in USA or Portugal can also be warranty by China.
INSTALLATION Singbee offers detailed instructions and videos for installation of best price of led solar street lights. Besides, Singbee can provide onsite installation training and technical assistance free of charge in initial period for large projects more than 100 poles because we has developed her experienced technical team.
AFTER SALES Singbee will offer technical guidance and repair service for the whole life time of her products.
Singbee promises to respond with customer's questions within 24 working-hours.
You can get all the after sales service from three places of Singbee (China, USA and Portugal)
